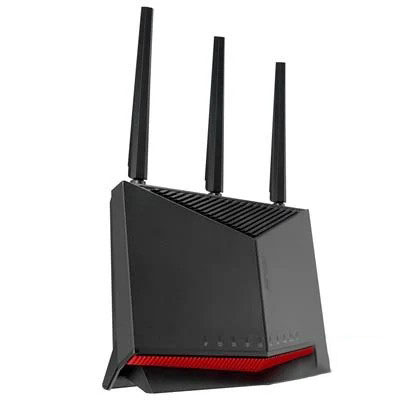

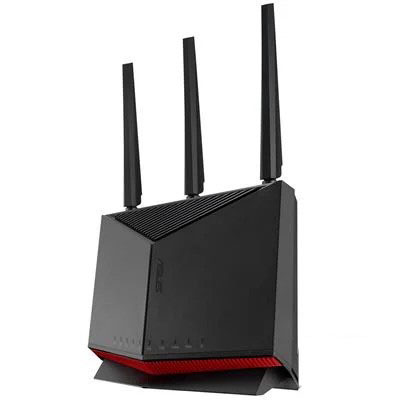

ASUS BE6800 DUAL-BAND WIFI 7 ROUTER
BE6800 Dual-Band WIFI 7 Router, Black
Dominate your network with blazing performance.
$449.99
product description
ASUS BE6800 DUAL-BAND WIFI 7 ROUTER
Dominate your network with blazing performance. For those who demand the absolute best, today and tomorrow, the ASUS RT-BE86U is powered by next-level WiFi 7, delivering lightning-fast dual-band speeds of up to 6800 Mbps for your connected living. The RT-BE86U boasts a monster 20G combined network capacity, unlocking cutting-edge 10G networking with a 10 Gbps WAN/LAN port and up to four 2.5 Gbps LAN ports. Meanwhile. the new ASUSWRT 5.0 ensures a worry-free network experience from end-to-end and 24/7.
Features
IEEE 802.11be
Beyond Fast WiFi 7
The RT-BE86U boasts dual-band WiFi 7 technology, achieving blazing-fast speeds of up to 6800 Mbps, ensuring seamless streaming, gaming and data-intensive tasks. Whether you’re binge-watching your favorite shows or collaborating in a virtual meeting, this router delivers
Multi-Gig Network
Unlock Next-gen 10G Network
The RT-BE86U comes with a 10G port and four 2.5G ports that combine for up to 20G of blistering WAN and LAN capacity. Advanced network configurations are made easy with Multi-WAN auto detection, convenient mobile tethering backup via USB and powerful VLAN controls.
Advanced 160 MHz Channels
The RT-BE86U unleashes the full potential of the ultrawide 160 MHz channels, delivering ultra-fast data transfer rates, reduced latency, and enhanced performance for a smoother network experience.
Comprehensive MLO Support
Multi-Link Operation (MLO) enables buffering-free connection by intelligently combining and switching between the 2.4 GHz and 5 GHz bands. ASUS RT-BE58U is built for the future of all WiFi 7 devices, regardless of the MLO mode they use*.
10G WAN/LAN Port
The RT-BE86U includes one 10G WAN/LAN port, ready for next-gen entertainment or home studios. It also unlocks an ultra-high speed 10 Gbps ethernet backhaul for a robust wired network.
Up to Four 2.5G LAN Ports
One 2.5G WAN/LAN port and three 2.5G LAN ports for high-speed entertainment, home studios as well as ultra-fast 2.5 Gbps ethernet backhaul.
Multi-WAN with Auto Detection
Multi-WAN input support includes a 10G WAN/LAN port and a 2.5G WAN/LAN port for flexible configurations. Hassle-free auto WAN detection streamlines setup.
Dedicated Gaming Port
One 2.5G LAN port is configured as a dedicated gaming port, prioritizing any connected gaming devices for competitive gameplay.
Powerful VLAN Controls
Simplify home network management by organizing devices into logical groups using VLANs, making it easier to apply specific security rules and manage access.
4G / 5G Mobile Tethering
Stay connected anytime with convenient USB 4G LTE and 5G mobile tethering, even during internet outages or on the go.
Legacy Performance, Evolved
The RT-BE86U builds upon the legacy of the RT-AX86U with WiFi 7 technology, delivering superior network performance and exceptional reliability. Equipped with high-power front-end modules, the external antennas eliminate WiFi dead zones while providing consistent coverage in all directions. This 7-stream design enhances throughput and expands coverage, while the detachable antennas can be repositioned to better suit your specific needs, such as overcoming walls or other interference.
Next-gen Powerhouse
The RT-BE86U boasts a powerful quad-core 2.6 GHz CPU which increases processing power by up to 30%* for lightning-fast responsiveness, accelerated data transfers and an optimized gaming experience. It can also handle the most demanding networking scenarios, such as 10G connections or advanced network security.
Cutting-Edge Cooling
The ASUS RT-BE86U features a meticulously crafted heat dissipation design that seamlessly blends with its sleek aesthetics. The strategically placed black heat sink on the front cover not only enhances the router’s visual appeal but also ensures optimal cooling performance.
WiFi 7 Powering AiMesh
RT-BE86U harnesses the power of WiFi 7 and next-gen AiMesh technology to deliver wider coverage, a more stable and secure network and a feature-rich network experience – all under one network name for your entire smart home.
Versatile Backhaul Options
Experience lightning-fast speeds even in houses with thick walls. The RT-BE86U boasts one 10G port and four 2.5G ports, ensuring flexible network configurations and ultra-fast wired gaming experience.
Values Beyond Extension
AiMesh goes beyond just extending coverage or seamless roaming. It works with all compatible ASUS routers, offering easy management, advanced security and smart home features across your entire network.
Triple-level Protection
ASUS Network Security deploys a triple-level protection design and commercial-grade cloud database powered by Trend Micro™, safeguarding your network from end-to-end, 24/7. This powerful and advanced security helps ensure worry-free protection from ever-evolving cyber threats.
Powerful Network Management via SUBNET and VLAN
ASUS Guest Network Pro streamlines the process of creating or connecting to dedicated SSIDs or VLANs with advanced features like IoT Device and instant VPN connections that are easy to set up.
Stay Protected Anywhere, Anytime
Secure browsing, data privacy, remote access – extensive ASUS VPN capabilities handle it all. Versatile VPN protocols are supported, including the cutting-edge WireGguard® for lightning-fast speeds and optimal performance.
Supercharge Your Gameplay
The RT-BE86U is built to deliver the very best performance for gamers, with the features and tools to help you win every battle, even in crowded multi-device environments.
Specifications
| Make and Model | ASUS BE6800 DUAL-BAND WIFI 7 ROUTER |
|---|---|
| Part Number | RT-BE86U |
| Color | Black |
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 7 (802.11be) IPv4 IPv6 |
| Product Segment | BE6800 ultimate BE performance : 1032+5764 Mbps |
| WiFi Data Rate | WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps WiFi 7 (802.11be) (5GHz): up to 5764 Mbps |
| Antenna | External antenna x 3 Internal antenna x 1 |
| Transmit / Receive | 2.4GHz 3×3 5GHz 4×4 |
| Processor | 2.6GHz quad-core processor |
| Memory | 256 MB Flash and 1 GB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz 5 GHz |
| Operating Mode | Wireless Router Mode AiMesh Node Mode Access Point Mode Media Bridge Mode Repeater Mode |

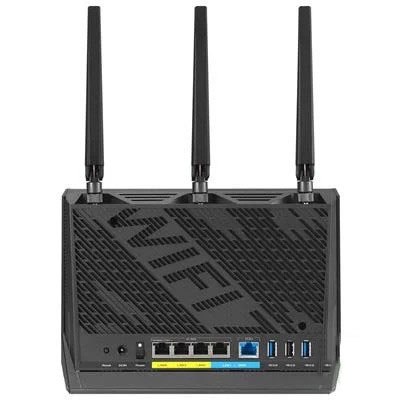

| I/O Ports | 1 x 10G for WAN/LAN 1 x 2.5G for WAN/LAN 3 x 2.5G for LAN 1 x USB 3.2 Gen1 1 x USB 2.0 Gen1 |
| Buttons | WPS Button, Reset Button, Power Switch, LED on/off Button |
| LED Indicator | 1 x WAN 1 x 10G Port 4 x LAN 1 x USB 1 x 2.4GHz 1 x 5GHz 1 x Power |
| Power Supply | AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current |
| AiMesh | AiMesh Primary AiMesh Router AiMesh Node |
| Game | Mobile Game Mode Gear Accelerator OpenNAT (Game Profile) Gaming Port |
| Parental Control | “Allow you to block access to unwanted websites and apps.” Web & Apps Filters Time Scheduling Safe Browsing Customized Internet Schedule Maximum Parental Control Profile: 64 Maximum Parental Control Content Cilter Rule: 64 |
| Guest Network | “You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings.” Support Guest Network Pro Maximum Guest Network Rule : 2.4 GHz + 5 GHz: 5 Guest Network Connection Time Limit Guest Network Pro Encryption: Open system, WPA/WPA2-Personal/WPA3-Personal |
| Security | AiProtection VPN WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE WPS Let’s Encrypt DNS-over-TLS SSH Security Scan Firewall Maximum Firewall Keyword Filter: 64 Maximum Firewall Network Service Filter: 32 Maximum Firewall URL Filter : 64 |
| AiProtection | AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark |
| Traffic Control | Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter — Maximum Bandwidth Limiter Rule: 32 Traditional QoS Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period: Daily, Weekly, Monthly • Website History |
| WAN | Internet Connection Type: • PPPoE • PPTP • L2TP • Automatic IP • Static IP • IPSec Dual WAN WAN Aggregation 3G / 4G LTE dongle Port forwarding • Maximum Port Forwarding Rule: 64 Port triggering • Maximum Port Triggering Rule: 32 DMZ DDNS NAT Passthrough: • PPTP Pass-Through • L2TP Pass-Through • IPSec Pass-Through • RTSP Pass-Through • H.323 Pass-Through • SIP Pass-Through • PPPoE Relay |
| LAN | DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule: 128 Wake on LAN (WOL) |
| Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| USB application | File System: • HFS+ • NTFS • vFAT • ext2 • ext3 • ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges |
| User Interface | WEB: ASUSWRT APP: ASUS Router APP |
| Administration | Configuration Backup and Restore Diagnosis tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
| Dimensions | 235 x 90 x 316 mm |
| Weight | 854 g |
Package Contents
- 1 x RT-BE86U WiFi router
- 1 x RJ-45 cable
- 1 x Power adapter
- 1 x Quick Start Guide
- 1 x Warranty card
