Fractal Design Terra Mini ITX Case, Terra Graphite

Fractal Design Terra Mini ITX Case, Graphite w/ Walnut Front Panel, PCIe 4.0 Riser Cable

Terra is a PC case designed and engineered to reshape the small form factor gaming experience.

$284.99

  • Money Back Guarantee
  • Top Quality Items
  • Fast & Secure Checkout

product description

Fractal Design Terra Mini ITX Case, Terra Graphite

Terra is a PC case designed and engineered to reshape the small form factor gaming experience.

Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid Walnut.

This mITX Case includes a PCIe 4.0 Riser Cable and features a stepless slidable central wall for build flexibility, with space for a GPU up to 322mm long.

  • Install a powerful GPU up to 322mm long in a space-saving 10.4L case
  • Add natural materials to your setup with a front-facing panel cut from FSC-certified solid Walnut
  • Sleek Anodized Aluminum exterior with an 8mm thick Aluminum front panel
  • Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, slidable central wall
  • Front-facing I/O featuring an aluminum power button and an USB Gen 2×2 (20Gbps) Type-C port and USB Type-A 3.0 Gen 1 (5Gbps) port
  • Get a head start on your build with the included PCIe 4.0 Riser cable
  • Store up to two SSDs in the dedicated 2.5” drive mounts
  • The side panels swing out, and the top slides off with an integrated tab
  • Enjoy the natural airflow through the ventilated top, side and bottom panels
  • Transport your finished build safely with lockable top and side panels
feature

Features

Elegantly Crafted

  • Add natural materials to your setup with a front-facing panel cut from FSC-certified solid Walnut
  • Sleek Anodized Aluminum exterior with an 8mm thick Aluminum front panel
  • Enjoy the natural airflow through the ventilated top, side and bottom panels

Engineered For SFF Gaming

  • Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 Liter Case
  • Get a head start on your build with the included PCIe 4.0 riser cable
  • Store up to two SSDs in the dual dedicated 2.5 inch drive mounts

Easily Accessible

Slide open the top with an integrated tab and lift open the fully removable side panels for easy access to your components.

Choose Your Accent

The Terra is available in your choice of three distinct anodized aluminum versions to perfectly complement and elevate your gaming space.

Adjustable Motherboard Plate

Find your build’s ideal balance with 30mm of internal flexibility provided by a stepless, movable central wall. Slide it to the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other.

feature

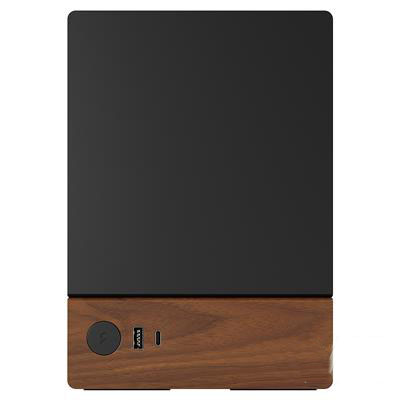

Front Facing I/O

The solid walnut front panel features an aluminum power button and two USB ports for connecting devices, including 1x USB 3.2 Gen 2×2 (20Gbps) port and 1x USB 3.0 Gen1 (5Gbps) Type-A port.

Natural Material

Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.

Highly Transportable

Features the ability to lock the top and side panels for safer transportation of your build.

Additional Information:

Visit the Manufacturer Product Web Page for Full Details

Download the Manufacturer Product Manual

Download the Manufacturer Specification Sheet

feature

Package Contents

  • 1x Fractal Design Terra mini ITX Case, Terra Graphite
  • 1x Installation Kit
  • User Manual

additional information

Make and Model

Fractal Design Terra Mini ITX Case

Part Number

FD-C-TER1N-01

Colour

Terra Graphite

Chassis Type

Mini ITX Tower

Motherboard Support

Mini ITX

Expansion Slots

3

Drive Bays

2x 2.5" Drive Bays

Front I/O

1x USB 3.2 Type-C Gen 2×2 (20Gbps) port
1x USB 3.0 Type-A Gen 1 (5Gbps) port
1x Power Button
1x Reset Button

Cable Routing

17 ~ 28mm Cable Routing Space

Fan Slots

Bottom: 1x 120mm Fan Slot

Included Fans

None

Radiator Slot

Side: 1x 120mm Radiator Slot

Included Radiators

None

Dust Filter

None

Video Card Sizes

Up to 322 x 145mm

CPU Clearance

Max GPU Mode: 48mm
Max CPU Mode: 77mm

Power Supply

Fits SFX-L / SFX Compatible Power Supplies up to 130mm long

Dimensions (LxWxH)

Case With Feet: 343 x 153 x 218mm
Case Without Feet, Screws and other Protrusions: 343 x 153 x 198mm

Weight

3.1kg
