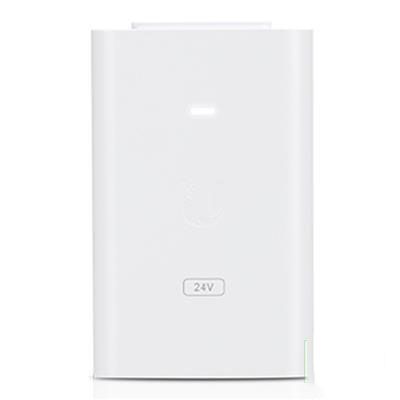

Ubiquiti® 24VDC, 24W, Gbit PoE Injector
Ubiquiti 24VDC, 24W, Gigabit PoE Injector
Electrostatic discharge (ESD) is the leading cause for outdoor device failures
$64.99
product description
Ubiquiti® 24VDC, 24W, Gbit PoE Injector
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.
Features
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Specifications
| Make and Model | Ubiquiti® 24VDC, 24W, Gbit PoE Injector, |
|---|---|
| Part Number | POE-24-24W-G-WH |
| Color | White |
| Output Voltage | 24VDC @ 1.0A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 750mA @ 90VAC |
| Inrush Current | <100A Peak @ 25°C |
| Efficiency | 86.2+% |
| Output Ripple | 200mV p-p |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
| Dimensions | 96 x 62 x 35 mm (3.78 x 2.44 x 1.38″) |
| Weight | 166 g (5.86 oz) |
