Ubiquiti Dream Wall
Ubiquiti Unifi Dream Wall All-In-One Internet Gateway
All-in-one internet gateway, WiFi access point, and UniFi Console with an abundance of PoE ports.
$1,369.99
product description
Ubiquiti Dream Wall
All-in-one internet gateway, WiFi access point, and UniFi Console with an abundance of PoE ports.
- Integrated Enterprise WiFi6 (4×4 MIMO)
- Full UniFi OS and UniFi application support
- 3.5+ Gbps routing
- (1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
- (1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
- 4.7″ touchscreen for management
- Integrated 128 GB SSD & pre-installed 512 GB microSD card
Specifications
| Make and Model | Ubiquiti Dream Wall |
|---|---|
| Part Number | UDW-US |
| Color | White |
| Enclosure materials | Polycarbonate, galvanized steel, aluminum alloy |
| Mount material | Stainless steel |
| Button | Factory reset |
| Mounting | Wall mount (included) |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System memory | 4 GB DDR4 |
| On-board storage | 16 GB eMMC |
| Integrated SSD | 128 GB |
| Pre-installed microSD card | 512 GB |
| Expansion slot | Micro SD memory card |
| Management interface | Ethernet, Bluetooth, WiFi |
| Networking interface | (17) LAN: GbE RJ45 ports (1) WAN: 2.5 GbE RJ45 port |
| SFP+ interface | (1) LAN: 10G SFP+ port (1) WAN: 10G SFP+ port |
| PoE interface | (4) PoE (Pair A 1, 2+; 3, 6-) (4) PoE+ (Pair A 1, 2+; 3, 6-) (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| MIMO | 2.4 GHz: 2 x 2, 5 GHz: 4 x 4 |
| Throughput rate | 2.4 GHz: 300 Mbps, 5 GHz: 2.4 Gbps |
| Antenna gain | 2.4 GHz: 5.9 dBi, 5 GHz: 6 dBi |
| ESD/EMP protection | Air: ± 8kV, contact: ± 4kV |
| LCM display | (1) 4.7″ touchscreen |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| LEDs | Ethernet: White – link/activity SFP+: White – link/activity PSU: Blue – ready, Amber – failure |
| Supported Data Rates | 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Power method | Universal AC input 100—240V AC, 7A Max., 50/60Hz |
| Power supply | (2) Hot-Swappable AC/DC 550W PSU* |
| Max. power consumption | 532W |
| Max. PoE wattage per port by PSE | PoE: 15.4W, PoE+: 30W, PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V, PoE+/PoE++: 50—57V |
| Max. TX power | 2.4 GHz: 23 dBm, 5 GHz: 26 dBm |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| WiFi standards | 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6 |

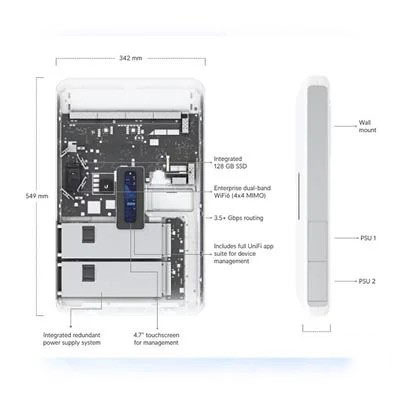

| Dimensions | 549 x 342 x 62 mm (21.6 x 13.5 x 2.4″) |
| Weight | 8.6 kg (19 lb) |
Package Contents
- Ubiquiti Dream Wall
- Accessories
- Users Manual
