A PCIe Card that Gives More SATA Ports

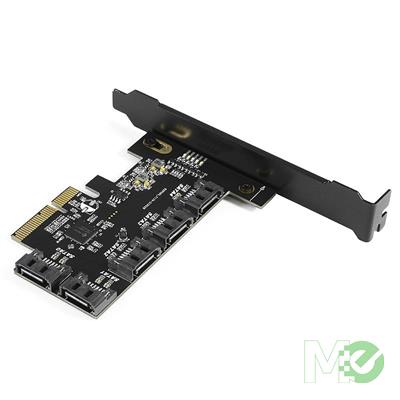

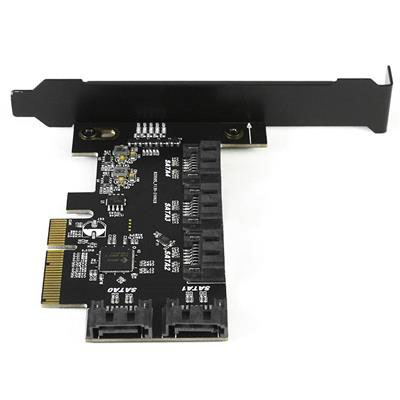

Vantec 5-Port SATA III 6Gbps PCIe x4 Host Card
This 5-Ports SATA III 6Gbps PCIe x4 Host card is designed for adding additional SATA III ports to your system. This small card will fit regular and slim or low profile chassis, ideal for any system with a PCIe x4 slot
$99.99
product description
A PCIe Card that Gives More SATA Ports
This 5-Ports SATA III 6Gbps PCIe x4 Host card is designed for adding additional SATA III ports to your system. This small card will fit regular and slim or low profile chassis, ideal for any system with a PCIe x4 slot. When installing into Windows® 10, not drivers are required, just plug and it is ready to add your drives like SSD, HDD, and Optical Drive*. You can use it for HDD, SSD, Optical drive, and more. The wide PCIe path will allow for a fast transfer speed. It is will support your new system with PCIe v3.0.
Features
- Support 5 SATA ports for Read/Write simultaneously
- Support SATA III 6Gbps transfer speed
- Support SATA III SSD, HDD, Optical drive*
- Support PCIe v3.0, requires x4 Slot

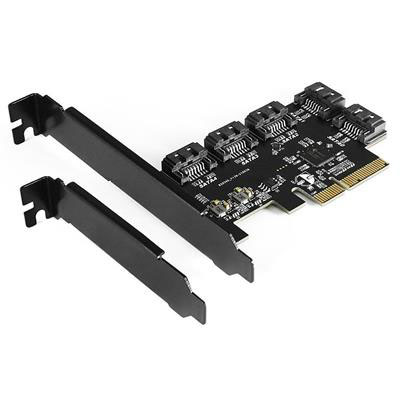

- Standard and Low Profile bracket included
- Windows 11/10/8/7 Ready, Compatible with Linux; No drivers required
- SATA cable not included
* Note: Optical drive support for data read/write, but not for booting.
Additional Information:
Visit the Manufacturer Product Web Page for Full Details
System Requirements
- Windows® 11, 10, 8.1, 8, 7
- Linux
- Available system board PCIe x4 or x8 or x16 slot
- SATA cable(s) (not included)
Package Contents
- Vantec 5-Port SATA III 6Gbps PCIe x4 Host Card
- Standard and Low Profile Brackets
- Quick Install Guide
additional information
| Part Number | UGT-ST655 |
|---|---|
| PCIe Standard Support | PCIe 3.0 |
| PCIe Slot Support | PCIe x4/x8/x16 |
| SATA Interface | 5 x Standard SATA III for SSD, HDD, Optical Drive* |
| Power | PCIe bus-powered |
| Cable Length | N/A |
| Temperature | Operating: 0°C to 45°C |
| Humidity | Operating: 10% to 85 % RH (no condensation) |
| Dimensions | 92 x 66 x 22 mm (3.6" x 2.6" x 0.9") |
| Weight | 87g |
